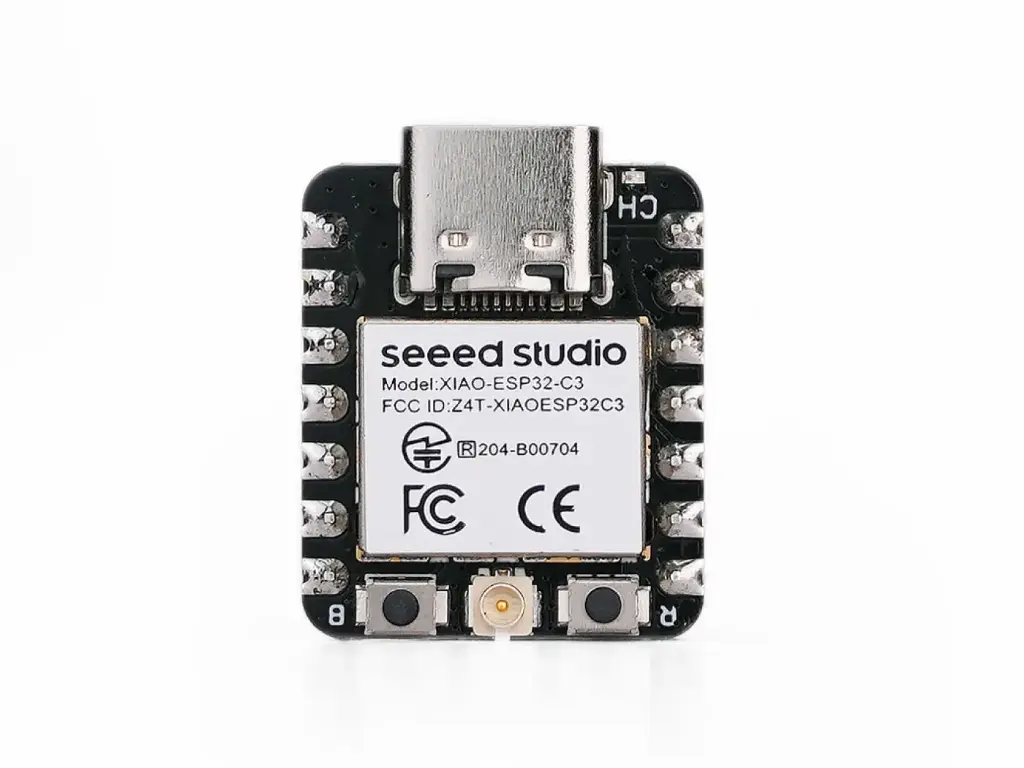

Ini adalah versi Seeed Studio XIAO ESP32C3 yang sudah disolder, yang mengadopsi arsitektur RISC-V baru, mendukung konektivitas nirkabel Wi-Fi dan BLE. Untuk aplikasi Internet of Things, Kita akan menemukan bahwa perangkat ini fleksibel dan cocok untuk semua jenis skenario IoT.
Flexible MCU Board: Incorporate the ESP32-C3 32-bit RISC-V chip, operating up to 160 MHz, mounted multiple development ports, supported by Arduino / CircuitPython
Outstanding RF performance: Implement complete Wi-Fi functions and Bluetooth Low Energy, while supporting communication over 100m with a U.FL antenna
Elaborate Power Design: Provide 4 working modes as low as 44 μA in deep sleep mode, while supporting lithium battery charge management
Thumb-sized Design: 21 x 17.8mm, Seeed Studio XIAO series classic form factor and elegant productization of single-sided components mounting,suitable for wearable devices
Perfect for Production: Breadboard-friendly & SMD design, no components on the back
Parameter
Description
Processor
ESP32-C3 SoC
RISC-V single-core 32-bit chip processor with a four-stage pipeline that operates at up to 160 MHz
Wireless
Complete 2.4GHz Wi-Fi subsystem
Bluetooth Low Energy 5.0/ Bluetooth Mesh
On-chip Memory
400KB SRAM & 4MB Flash
Interface
1x UART 1x IIC 1x SPI 11x GPIO(PWM) 4x ADC
1x Reset button 1x Boot button
Dimensions
21 x 17.8mm
Power(Typ.)
Max 3.3V Output Current: 500mA Test Condition: BAT Pin Input @ 3.8V Source Capability: 3A
